The User Interface

Layers Panel

The layer panel shows the layer stack.

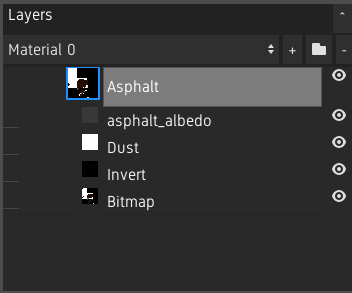

_images/layer_panel.png

The material can be selected using the dropdown at the top.

To add a new Material Layer, click the + button. To remove layers, click the - button. Clicking the Add Folder button will create a Material Folder or a Texture Folder, depending on if the selected layer is a Material Layer or a Texture Layer.

See The Layer Stack.

Properties

The properties panel shows the settings of the selected layer. When a Material Layer is selceted, it also shows which channels are enabled.

_images/properties_panel.png

Asset Browser

_images/asset_browser.png

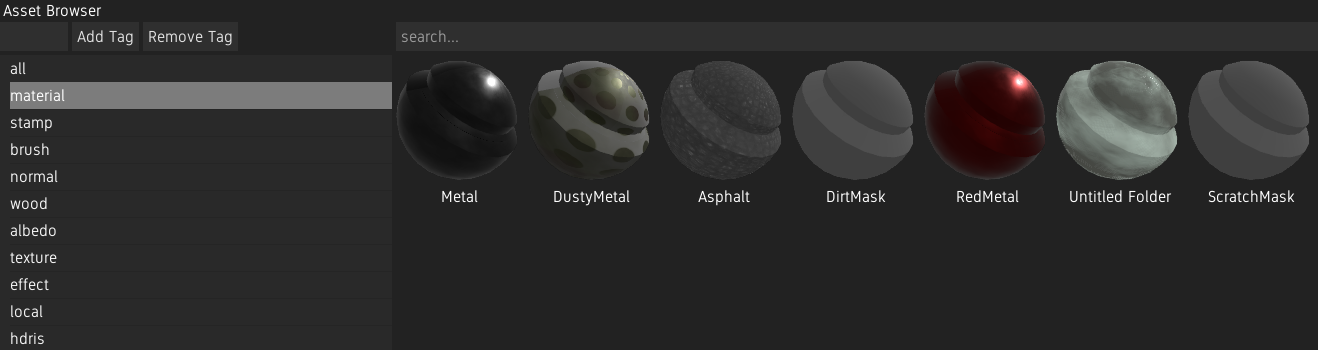

The asset browser shows all types of assets which can be used inside Material Painter. See Asset Library.

3D and 2D Viewport

The viewports shows the loaded model with the created materials applied.

Because the 3D rendering is a bottleneck on many machines, if Material Painter is slow when the viewport is large, Half Resolution can be enabled on a per-viewport basis to speed up the program.

The FPS counter at the top left can be used to troubleshoot framerate issues.

3D Viewport

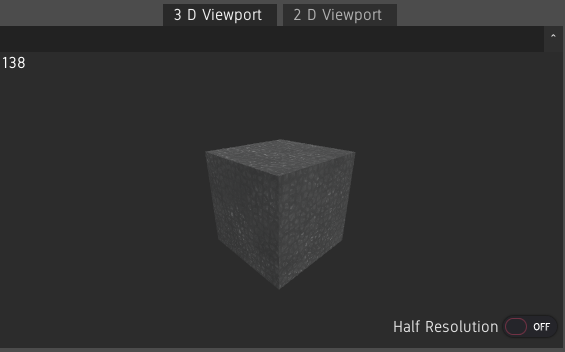

_images/3d_viewport.png

Use the middle mouse button to rotate the model, shift + middle mouse button to pan and scroll to zoom.

2D Viewport

The 2D viewport shows the UV map of the model with the material and shading information of the 3D mesh.

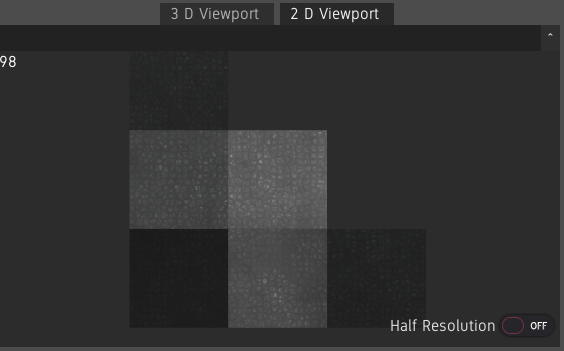

_images/2d_viewport.png

The 2D view can be panned with the middle mouse button and zoomed in and out using the mouse wheel.

Environment

The sun can be rotated in each viewport by right clicking and dragging. Shadows can be enabled under View>Enable Shadows. Note: Shadows can cause a performance hit.

The background is a solid gray by default. The HDRI can be shown under View>Show Background. The background can also be blurred by a configurable amount under View>Background Blur>Amount. To disable blur, select the Amount 0. To use a different HDRI, drag and drop an HDRI from the asset library onto the viewport. Custom HDRIs can also be imported. See Asset Library.

Tools and Tool Settings

The tools and tool settings panel are show when a Bitmap Layer is selected.

_images/tools.png

The tools panel shows the available tools. A tool can be selected by clicking its icon.

_images/tool_settings.png

The settings of the selected tool can be configured in the tool settings panel. See Painting And Selection Tools.

The brush can also be saved as a brush asset by clicking on Save Brush. See Asset Library.

Results

The results panel can be shown under View>Show Results. It shows the result of the editing material’s channels.

Channels can be isolated by double-clicking the result. The model will temporarily show the selected channel as albedo. To go back to showing all channels, double-click the channel again.

The size of the results can be changed with ctrl and scroll wheel. This size will be saved when saving the layout.

_images/results.png

Customizing the Interface

Panels can be repositioned by dragging their titles and moving them above another panel. A panel can be dropped on the edges of another panel to put it beside it, or in the middle to create a tabbed panel.

Panels can be “popped out” to make them floating by clicking the ^ button next to the title. These floating windows can be resized by dragging on the edges, and popped back in by click the button again.

Layouts can be saved under View>Layouts>Save Current and loaded by clicking on a layout under View>Layouts. Layouts are saved under user://layouts. The layout named default is used on startup. If you have overriden the default layout and want to go back to the original, delete or rename the default.json file under user://layouts.
